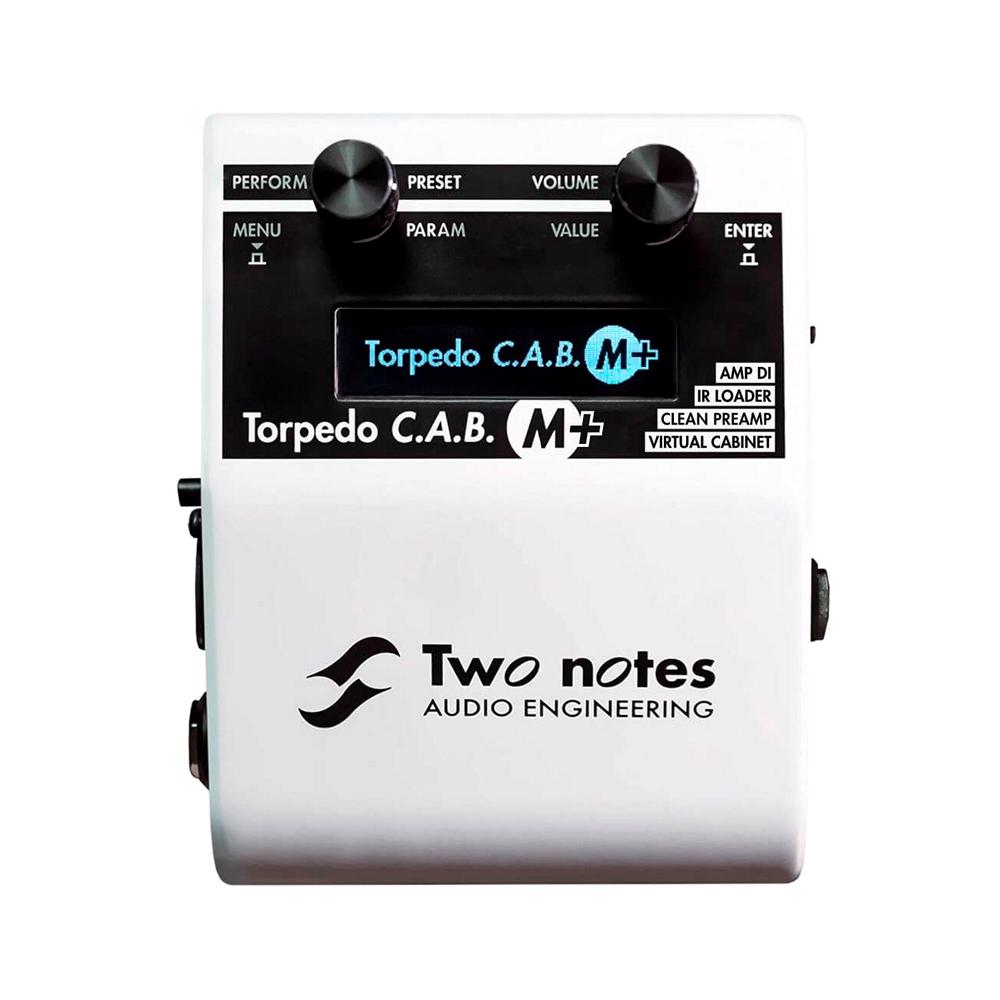

Two Notes Torpedo C.A.B. M+ Speaker Simulator Pedal

Torpedo C.A.B. M+ is a powerful pedal platform providing the ideal foundation to build incredible tones without your amps or cabinets. It offers a studio grade, amp-free rig loaded with 32 premium DynIR Virtual Cabinets, each coming with a choice of 12 room emulations and 8 mics. Building on the success of the acclaimed Torpedo C.A.B. M, the C.A.B. M+ includes a stunning clean preamp, refined power amps, enhancer, tuner, expanded reverbs and noise gate.

Shape your tone directly on the hardware or control your C.A.B. M+ via your computer with Torpedo Remote USB in a home / studio environment. For convenient tone tweaking on stage, you can also pair your Torpedo hardware with your phone (or tablet) via Wireless Torpedo Remote (iOS / Android).

No other pedal offers such universal control of the miking chain - with dual miking available on every cabinet you may never use a real mic again. With our unique Dynamic IR / Virtual Cabinet technology – each cabinet contains the equivalent of 160,000 static IRs.

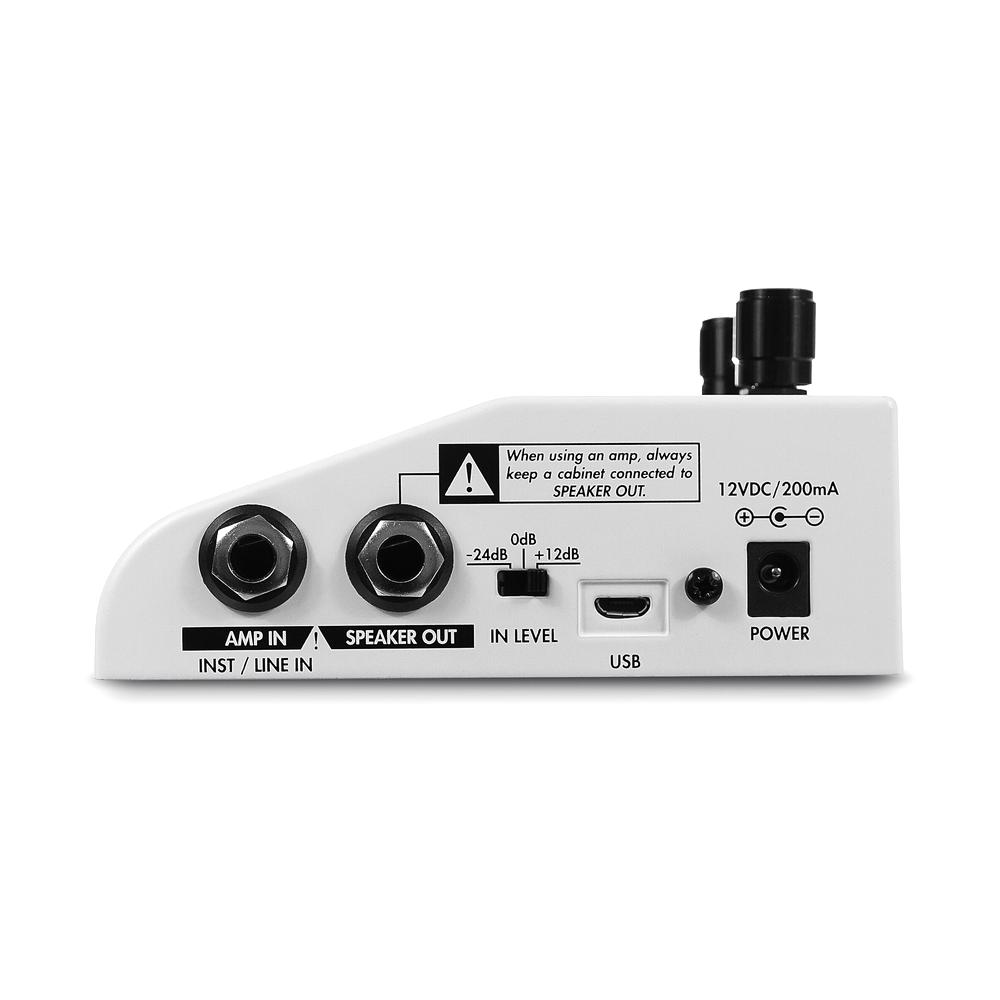

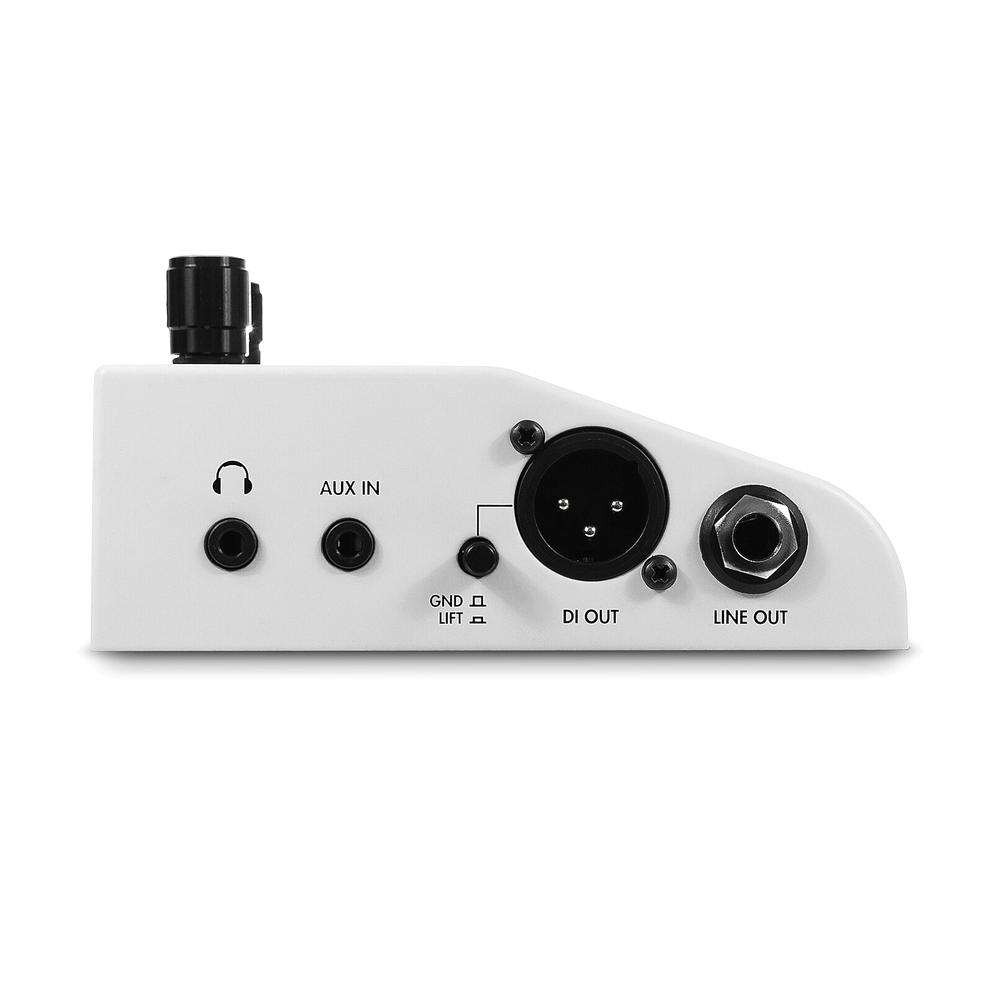

Input/Output:

• Amp/Inst/Line Input: 1/4″ Jack balanced (TRS)
• In Level Switch*: +12dB: Max level: 4 dBu, Impedance: 1 MOhms 0dB: Max level: 16 dBu, Impedance: 57 kOhms -24dB: Max level: 40 dBu, Impedance: 47 kOhms *Affects input sensitivity and impedance
• Aux In: 1/8″ (3.5mm) TRS Jack
• Speaker output*: 1/4″ Jack balanced (TS) *Unprocessed, unbuffered, directly connected to Amp In
• DI output: XLR balanced Max level: 10 dBu Impedance: 300 Ohms
• Line output: 1/4″ Jack balanced (TRS) Max level: 10 dBu Impedance: 300 Ohms
• Headphones output: 1/8″ Mini-Jack (TRS)
• USB connector: USB 2.0 Micro-B
• Memory card: 256Mb Micro-SD included Up to 32Gb cards supported

Digital Audio:

• AD/DA Converters: Studio-grade 24 bits / 96 kHz
• Bandwidth (-1dB): 30 Hz – 19 kHz
• Signal-to-noise ratio: 91 dB
• Internal Processing: 32 bits floating-point
• Latency: 2.2 ms (Line Input to Line Output)

Power:

• Power adapter: DC Jack 2.1mm, negative center
• Input voltage: 12V DC
• Power consumption: Approximately 2W
• Current consumption: 200mA

Dimensions & weight

• Width x Depth x Height*: 12.1cm x 10cm x 6cm – 4.8″ x 4″ x 2.4″ *Including connectors and knobs
• Weight: 450 g / 0.99 lbs
