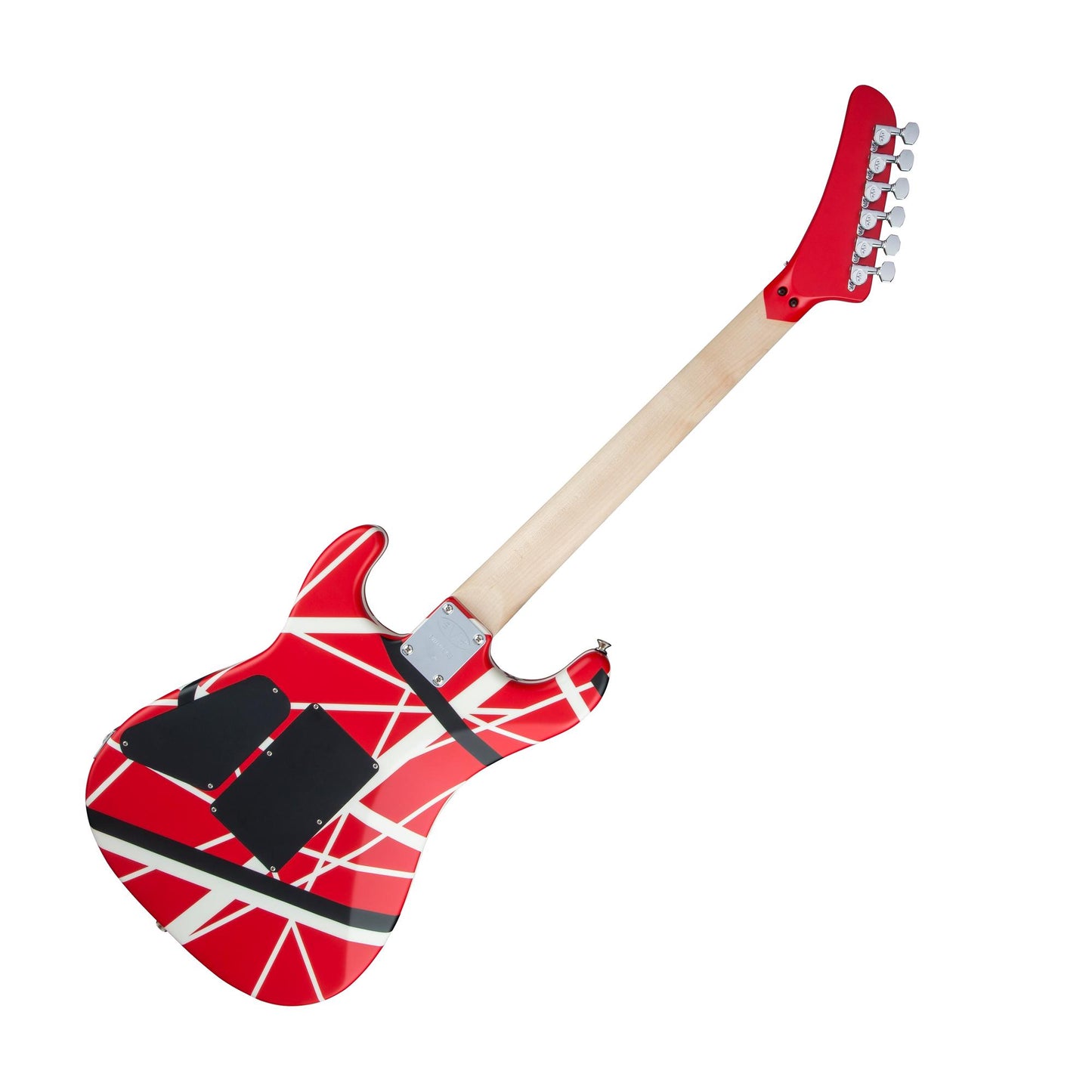

EVH 5150 Striped Series Electric Guitar, Red, Black and White

When Eddie Van Halen introduced his famous red, white and black striped 5150® guitar in 1984, he never would have fathomed the thousands of copies it would inspire. But then again, Eddie has made a career of being copied in every which way imaginable. EVH proudly introduces a new Striped Series 5150 model based on his original instrument, featuring his distinctively striped 5150 motif and single humbucker setup.

The Striped Series 5150 has a basswood body identical to the original, with a bolt-on quartersawn maple neck featuring a comfortable modified “C” profile, hand-rubbed satin urethane finish on the back and unique “hockey stick” headstock. The fast-playing 12"-16" compound radius maple fingerboard has 22 jumbo frets, black dot inlays and a convenient heel-mount truss rod adjustment wheel.

The 5150 is also fitted with a custom-designed EVH® Wolfgang® alnico 2 humbucking bridge pickup, delivering the perfect amount of power and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. A custom designed EVH-branded low-friction volume knob provides for unmatched performance and even-volume tapering for the smoothest volume swells.

Decked out with a rock solid “dive bomb” certified EVH-branded Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

With its quintessential red 5150 hologram numbers and star decals, the Striped Series 5150 is a high-powered, high-performance machine that’s as kickass to look at as it is to play.

SPECS:

• Body Finish - Gloss Urethane
• Body Shape - 5150®
• Body Material - Basswood
• Bridge Pickup - Direct Mount EVH® Wolfgang® Humbucking
• Pickup Color - Black
• Controls - Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
• Pickup Configuration - H
• Neck Material - Quartersawn Maple
• Neck Construction - Bolt-On with Graphite Reinforcement
• Neck Thickness - .790" at 3rd Fret & .810" at 12th Fret
• Neck Finish - Hand-Rubbed Satin Urethane
• Neck Shape - EVH® Modified "C" Backshape
• Scale Length - 25.5" (648 mm)
• Fingerboard Radius - 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material - Maple
• Number of Frets - 22
• Fret Size - Jumbo
• Nut Material - Floyd Rose® R3 Locking
• Nut Width - 1.685" (42.8 mm)
