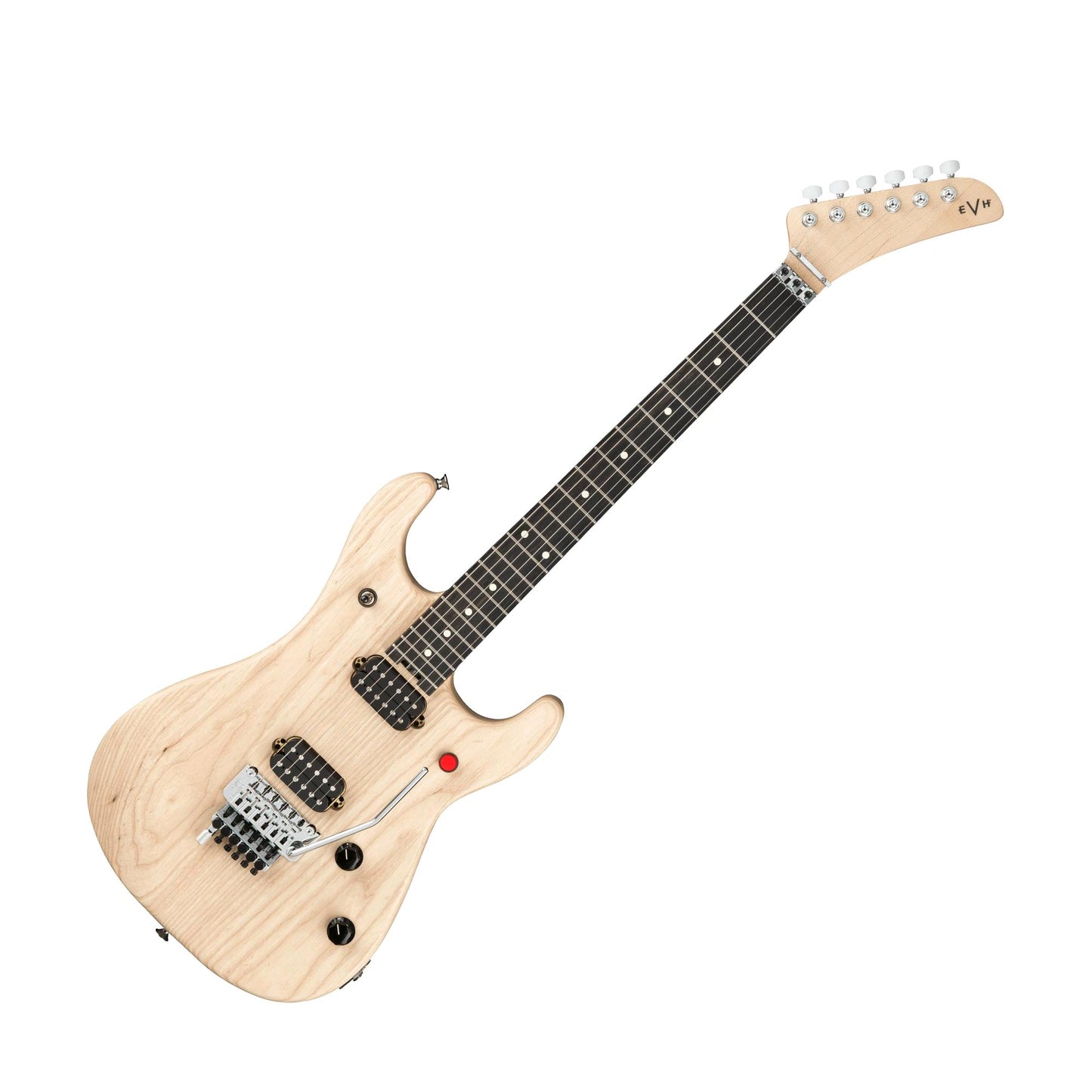

EVH 5150 Limited Edition Deluxe Electric Guitar w/Ebony Fingerboard, Natural Ash

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the Limited Edition 5150 Deluxe Ash features a modified Strat®-style body with a deeper upper body curve. The ash body is paired with a graphite-reinforced bolt-on quartersawn maple neck that has a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with a dual humbucking configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

A modern spin on a fan favorite, the Limited Edition 5150 Deluxe Ash is elegance personified with a Natural stain finish and all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

Product Specs:

• Neck:
  • HEADSTOCK - EVH® Hockey Stick
  • NECK MATERIAL - Quartersawn Maple
  • NECK FINISH - Hand-Rubbed Satin
  • NECK SHAPE - EVH® Modified "C" Backshape
  • NECK CONSTRUCTION - Bolt-On with Graphite Reinforcement
  • NECK THICKNESS - .790" at 3rd Fret & .810" at 12th Fret
  • FINGERBOARD RADIUS - 12"-16" Compound Radius (304.8 mm to 406.4 mm)
  • FINGERBOARD MATERIAL - Ebony
  • POSITION INLAYS - White Dot
  • NUMBER OF FRETS - 22
  • TRUSS ROD NUT - Heel-Mount Truss Rod Adjustment Wheel
  • STRING NUT - Floyd Rose® R3 Locking
  • NUT WIDTH - 1.685" (42.8 mm)
  • NUT MATERIAL - Floyd Rose® R3 Locking
• Body:
  • BODY - Ash
  • BODY FINISH - Satin
  • BODY SHAPE5 - 150™
  • BODY MATERIAL - Ash
• Hardware:
  • BRIDGE - Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
  • TREMOLO BLOCK - Brass
  • PICKUP COVERS - Black
  • CONTROL KNOBS - Black Plastic
  • HARDWARE FINISH - Chrome
  • TUNING MACHINES - EVH®-Branded Gotoh®
  • STRING TREES - Floyd Rose® Retainer Bar
  • STRINGS - EVH® Nickel Plated Steel (.009-.042 Gauges)
  • TREMOLO ARM - Floyd Rose® 1000 Series Locking
  • NECK PLATE - 4-Bolt Standard
  • STRAP BUTTONS - Oversized
• Electronics:
  • BRIDGE PICKUP - Direct Mount EVH® Wolfgang® Humbucking
  • NECK PICKUP - Direct Mount EVH® Wolfgang® Humbucking
  • PICKUP CONFIGURATION - HH
  • CONTROLS - Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
  • SWITCHING - 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
  • AUXILIARY SWITCHING - Kill Switch
• Measurements:
  • DIMENSIONS - 4.50x15.20x42.10 IN
  • SHIPPING WEIGHT - 16.15 LB
  • FRET SIZE - Jumbo
  • SCALE LENGTH - 25.5" (648 mm)
  • SHIPPING LENGTH - 42.10 IN
  • SHIPPING HEIGHT - 4.50 IN
  • SHIPPING WIDTH - 15.20 IN
