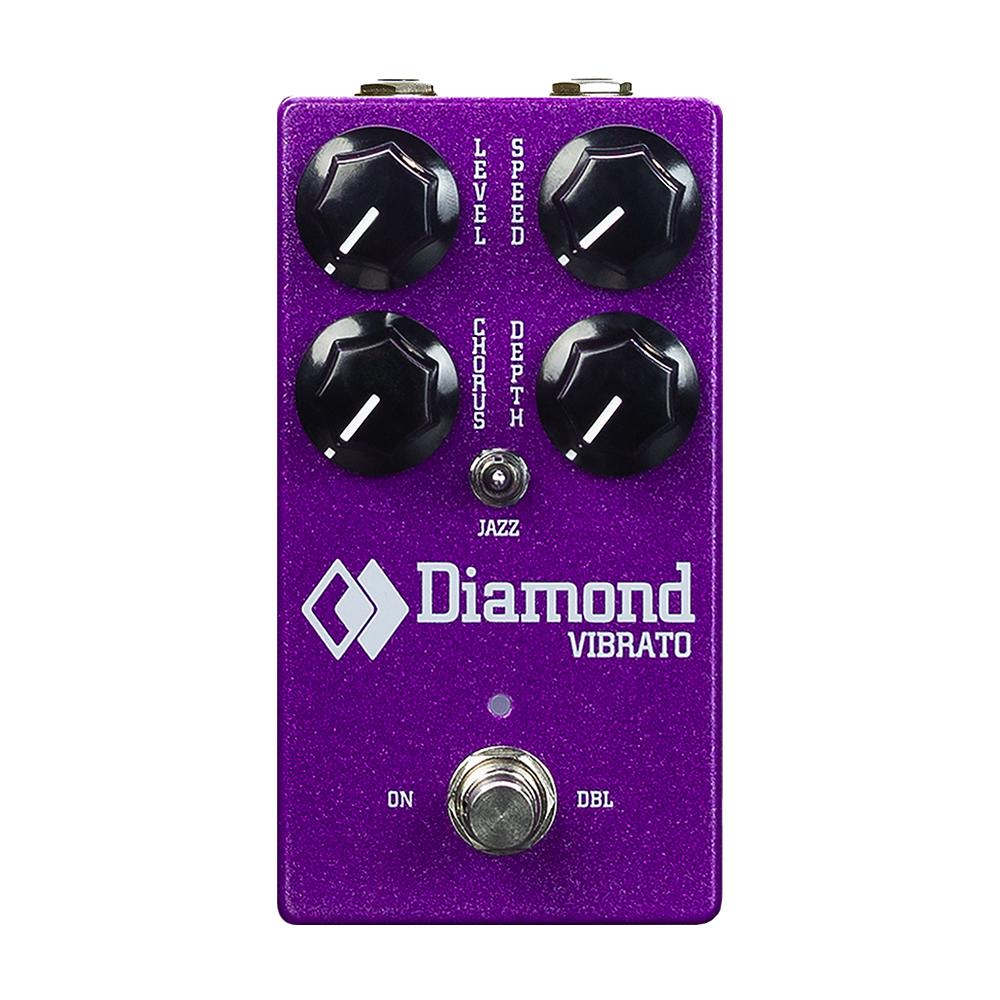

Diamond Vibrato
Diamond

Diamond Vibrato

Free Shipping
Regular price $279.00
Not all items are stocked at our Boca Raton location. If you're local, please contact us before visiting.

One of the world’s most sought-after and coveted Vibrato pedals enhanced with decades worth of player feedback, cutting-edge tech and a meticulous redesign. Crafted around the revered MN3007 Bucket Brigade Delay chip, it delivers rich, organic vibrato and chorus tones reminiscent of 70s and 80s guitar legends.

  • All-analog bucket brigade circuitry
  • Updated Compandor design for increased clarity, less distortion and lower noise floor
  • Legendary MN3007 Bucket Brigade Delay chip—NOS Panasonic BBDs in first run.
  • Pedalboard-friendly enclosure with top jacks
  • Soft-touch relay-based true bypass switching
  • Variable chorus control for blending dry and wet signals
  • Standardized negative-center 9-18VDC input with polarity and over-voltage protection
  • Tone-shaping Jazz switch
  • Momentary or latching speed doubler
  • Wider speed range going from 0.1Hz to 20Hz.

Compact, yet powerful, the latest & greatest version of the Vibrato boasts improved clarity, reduced distortion, and a wider speed range. In addition to a wide 9-18VDC operating range and top-notch components, it's the ultimate must-have analog vibrato pedal for any modern players seeking vintage warmth with contemporary refinement.

  • Input Impedance: > 1 MΩ
  • Output Impedance: < 10 KΩ
  • Switching: Relay True Bypass
  • Power Requirement: 9-18VDC negative tip, 2.1mm Barrel Jack
  • Current Draw @ 9V: 40mA
  • Current Draw @ 18V: 45mA
  • Jazz (UP) High Roll-Off: 5 kHz w/ -3db
  • Jazz (DOWN) High Roll-Off: 1.5 kHz w/ -3B
  • Dimensions: 4.8” x 2.64” x 1.58”
  • Weight: 280g
