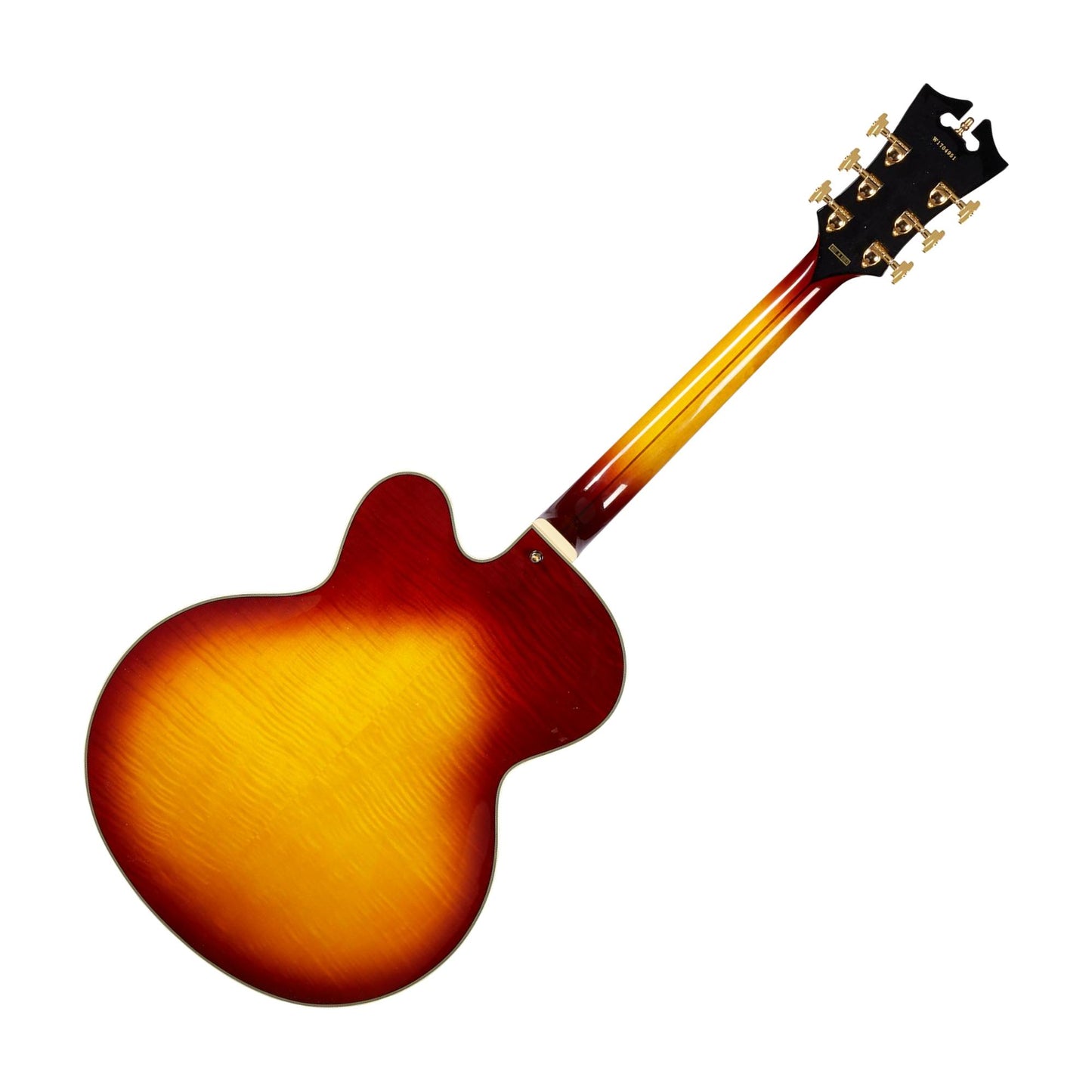

D'Angelico EXL-1 Excel Hollow-Body Electric Guitar, Iced Tea Burst

John D’Angelico’s original archtop design is legend, and the EXL-1 is its modern-day counterpart. True to the original in every detail, the EXL-1 features a USA-made Seymour Duncan Johnny Smith Floating Mini-Humbucker to maximize the acoustic tone of its commanding 17-inch-wide, 3-inch-deep body. Art Deco-inspired details frame the EXL-1—with a scroll-style neck bevel, mother-of-pearl inlays on an ebony bridge, and split-block inlays on a pau ferro fingerboard.

Specs:

MODEL:
• Specific Model: Excel EXL-1 Iced Tea Burst (2018)

  HARDWARE:

• Hardware Color: Gold

  HEAD:

• Logo (Front): Mother of Pearl Excel Shield Logo
• Logo (Back): W180001-Gold Screen
• Machine Head: Grover Super Rotomatic
• String: D'Angelico Electrozinc Jazz 12's (12-52)
• Truss Rod Cover: Aluminum Skyscraper, Gold
• Nut Width: 1 11/16”
• Nut Material: Bone

  FINGERBOARD:

• Material: Pau Ferro
• Binding: 3 Ply
• Fretwire Medium: Jumbo
• Scale: 25.5”
• Radius: 16"
• Position: Inlay Top Mother of Pearl Split-Block
• Side Marker: Yes
• Fret Number: 22 (Scroll-Style Bevel)
• Frets Clear: N/A

  NECK:

• Material 3 piece: Maple/Walnut/Maple (w/ Single Stripe on the Back)
• Shape of Back: C-Shape
• Joint Type: Set-Thru
• Thickness: 1F 20mm
• 12F: 22mm
• Trussrod: Dual Action

  BODY:

• Body Style: Hollowbody
• Body Depth: 3"
• Body Width: 17"
• Color: Iced Tea Burst
• Shape: Single cutaway
• Top Material: Laminated Spruce
• Back Material; Laminated Flame Maple
• Side Material: Laminated Flame Maple
• Binding Top: 5 Ply
• Bridge: Ebony with MOP Inlays
• Tail & Tailpiece: D’Angelico Stairstep Screw
• Pickguard: Tortoise Scalini (5 ply)
• Strap Button: Two Gold / Locking

  ELECTRONICS:

• Electronics Overview: 1 Floating Mini-Humbucker / 1 volume / 1 tone
• Pickup (Neck): USA Seymour Duncan Johnny Smith Floating Mini-Humbucker
• Pickup (Bridge): N/A
• Knob (V&T): 2 Mini-Hexagon
• Selecter: N/A
• Knob (V&T): Cream
• Jack EG2P: mono
• Pots: 500k
• Weight: 8.3 LBS
• SN: W1800095

  CASE:

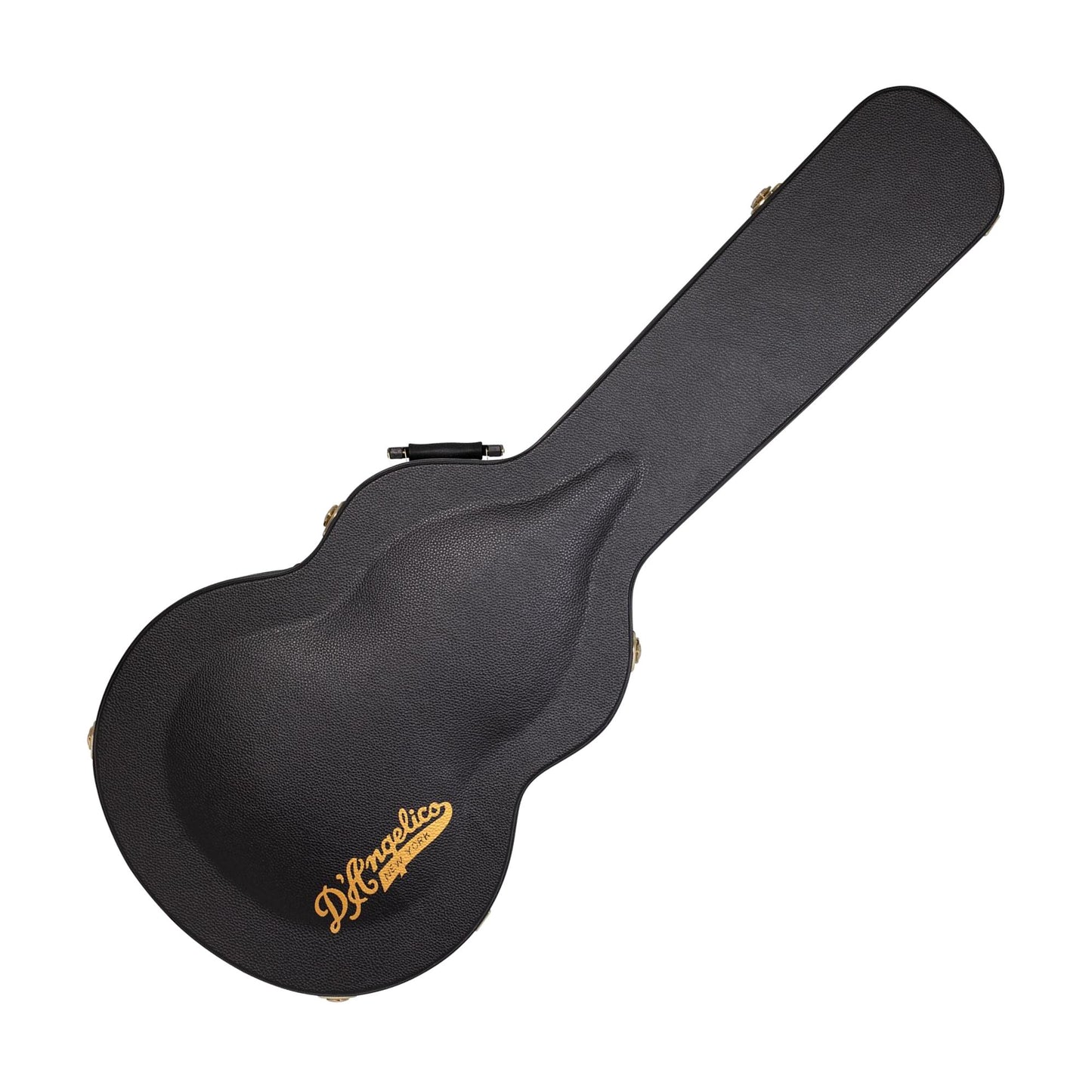

• Case: Deluxe Hardshell Case
