ART
Audio > Recording and Playback > Compressors/Limiters

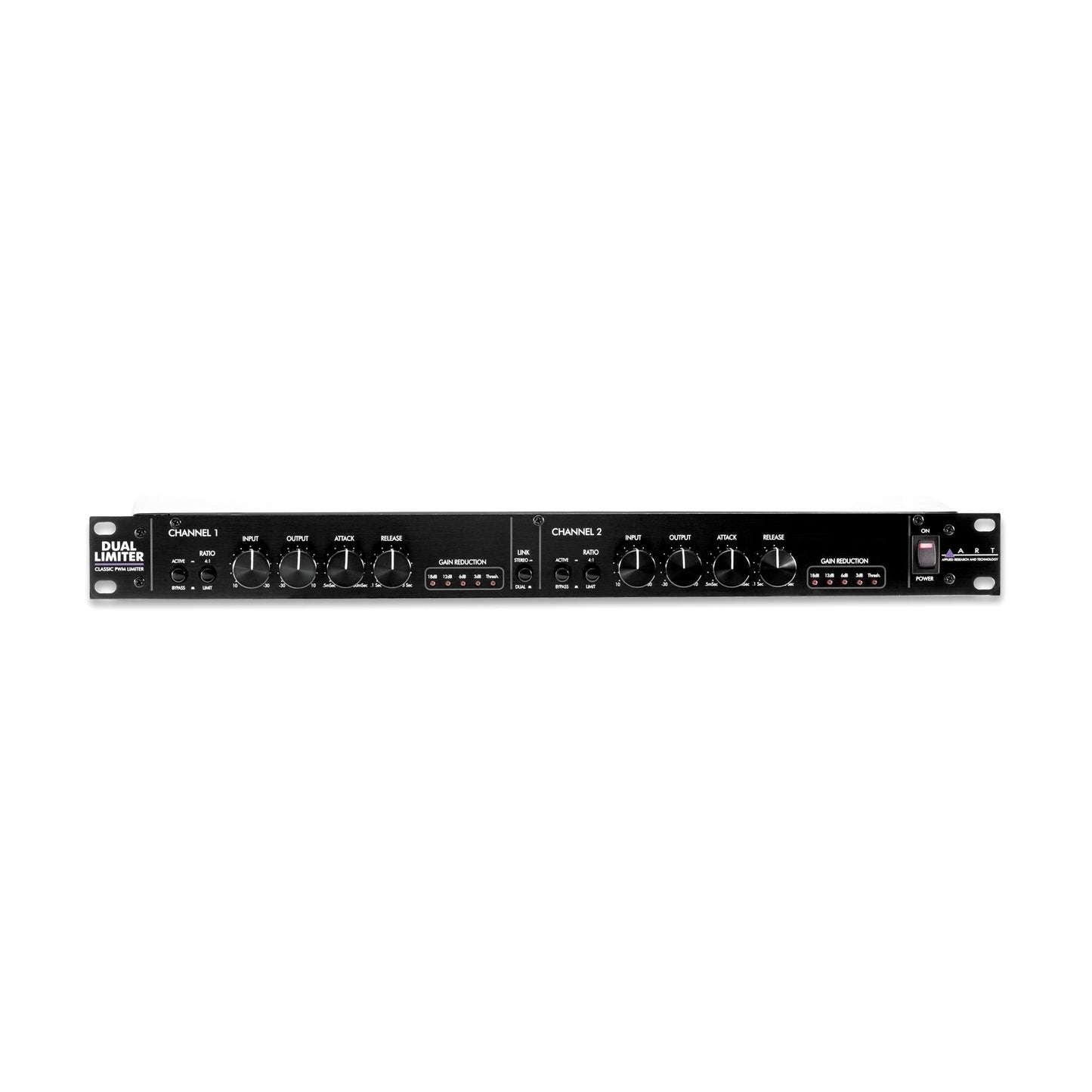

ART Duallimiter Dual Classic PWM Limiter

ART Duallimiter Dual Classic PWM Limiter

Out of stock

Regular price $224.99
Regular price $0.00 Sale price $224.99
Outlet Sold out
The DUAL LIMITER has a unique design that will enhance the sonic textures of your audio system for years to come. Developed in partnership with studio and live-sound engineers, the DUAL LIMITER is very musical.

The heart of the Dual Limiter is a unique PWM gain control circuit. Combined with its’ intelligent detector, the result is a Cl​ass

Specifications:

  • Equivalent Input Noise: -97dBu (20-20kHz)
  • Input Impedance: 20k Ohms
  • Output Impedance: Balanced/Unbalanced – 150 Ohms
  • Maximum Input Level: +20dBu
  • Maximum Output Level: +20dBu
  • Overall Gain: +40dB max
  • Frequency Response: 10Hz to 30kHz (+/- 1dB)
  • Dynamic Range: >105dB (20-20kHz)
  • Attack Time: 0.5mSec. to 50mSec., variable
  • Release Time: 100mSec. to 3 Sec., variable
  • Slope: 4:1 or >20:1, switchable (OR 2:1 or 1.5:1 when patching output to det. loop input)
  • Total Harmonic Distortion: 0.03% (typical) @ 0dBm Out
  • Power Requirements: USA – 105 to 125 VAC / 60 Hz, 1/2A fuse, <15W Export units configured for country of destination.
  • Dimensions: 1.75″ H x 19″ W x 5.9″ D (44.5mm x 482.6mm x 150mm)
  • Weight: 4.7 lbs (2.1 kg)

    0 dBu = 0.775 VRMS

  • Notes: ART maintains a policy of constant product improvement. ART reserves the right to make changes in design, or make additions to, or improvements upon, this product without any obligation to install same on products previously manufactured. Therefore, specifications are subject to change without notice.
